Optimized MCU

ASIC Success Story


An Industrial customer with a mature system needed to transition an off-the-shelf MCU into an optimized, low-cost and low-power ASIC with a reliable supply chain.

No longer dependent on the whims of a big MCU supplier, the customer solidified a robust supply chain while also optimizing the silicon for exactly what was needed in the application.

Glowing microchip on board, representing the optimized MCU.

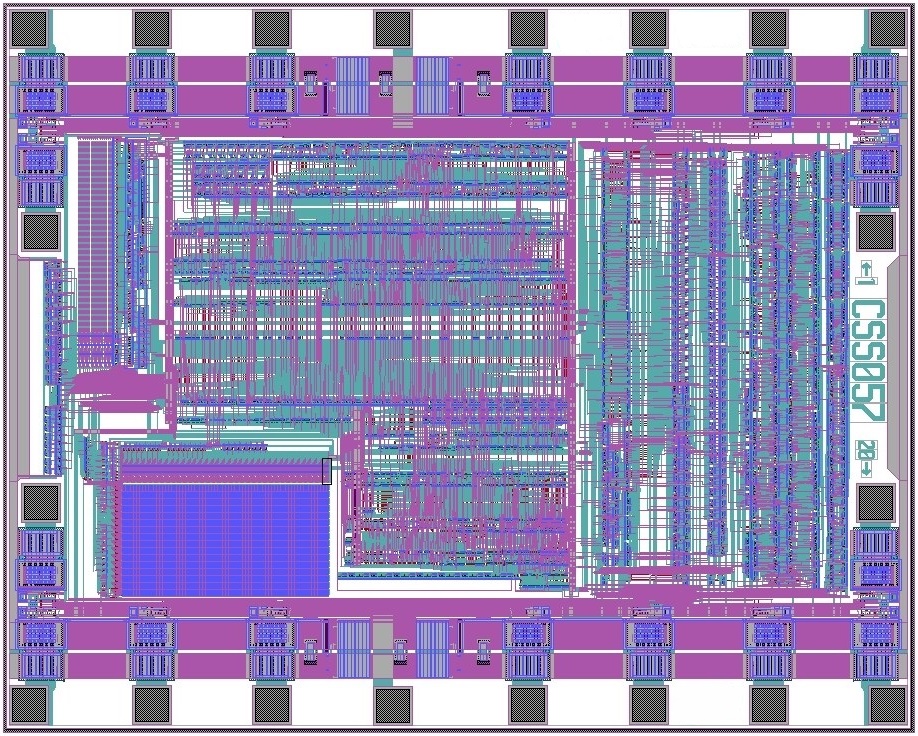

Layout image of optimized CPU chip.

Custom Solution from CSS

This custom ASIC draws about 3X less power than the original MCU device.

Program storage is provided by a 4K ROM. It contains a 128 byte SRAM, memory mapped I/O, a 16-bit counter/timer and a dedicated serial interface.

Key Features

  • 0.1uA Standby Current
  • Wide Supply Range (1.25V to 6.0V)
  • Versatile Instruction Set
  • 4K ROM, 128 byte RAM
  • 16-bit Timer & Dedicated Serial Interface
  • Temperature Range= -40°C to +85°C
